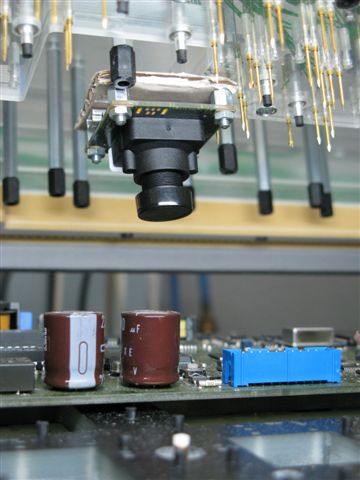

The image taken by a high-resolution camera is analyzed with special algorithms. Detected errors are displayed graphically on the screen or summarized in a bug report. Depending on the requirements, different cameras with resolutions ranging from 0.3 to 18 megapixels are available. For large test objects, such as complete backplanes, several PlatiScan modules can be cascaded. The standard version is suitable for assemblies up to a size of 590 mm x 530 mm.
PlatiScan is modular and available in different configurations and for different applications. In addition to the review of connector pins also a test of LEDs, displays, or assembly of components is possible. Due to the rapid evaluation of very many pins or LEDs can check within a short time. The per-pin test time is about 8-16 milliseconds. Particularly noteworthy is the ease of use of the system and the rapid creation of test programs. PlatiScan is applicable as a standalone system, integrated directly into a test fixture or used in a fully automated inline production line.
The entry price of PlatiScan is about 1,000, complete systems are available from 10,000 euros.
PlatiScan will be exhibited at the Productronica 2013, from 12 to 15 November 2013 in Munich, in Hall A1 Booth 341 and at the company ATX Hardware GmbH in hall A1, booth 135th
